Equipment inspections just became easier with SDT SonaVu™. This reliabitilty instrument simplifies condition monitoring for maintenance personnel. It is an optical camera that generates visuals from airborne ultrasound. Maintenance and reliability experts can take prompt action to avert downtime and avoid unnecessary repairs while maintaining safety as a priority.
High Voltage Inspections
Inspecting High Voltage equipment from 50M away is quick and easy with the SDT SonaVu™ ultrasound camera. Transformers, motor control centers, switch gear, and transmission lines can all be inspected from this distance with safety in mind.
A recent inspection of a step down transformer highlighted an issue using the ultrasound camera. This inspection was done by an untrained and inexperienced technician using the SonaVu™. It was conducted outside the fenced transformer area, approximately 25M from the transformer. Using the zoom on a normal phone camera identified discolored oil in one of the bushings. Further investigation is pending. This a an example how easy the SDT SonaVu™ ultrasound camera can be easily and successfully used in the field. Safety is never compromised.
Other high voltage examples are in electrical rooms, cables, motors and breakers.
Typical High Voltage Inspections with SDT SonaVu™
- Transformers
- Switchgear
- High Voltage Lines
- High Voltage Insulation
- Motor Control Centers
Breakdown of Insulation

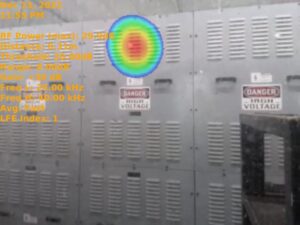

Abnormality in High Voltage Cabinet

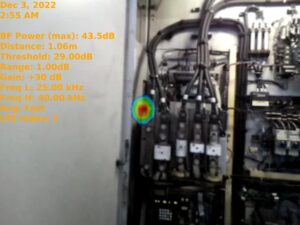

Loose High Voltage Connection
Compressed Air Leaks
Compressed air leaks are a hidden expense to manufacturing facilities. With high fuel prices and high electricity rates within the Caribbean, operators are forced to reduce operations and maintenance costs. The SonaVu™ is a great tool to find compressed air leaks. It easy!
Scan the area slowly and look for ultrasound detections on the touchscreen. Adjust to the threshold and range and the compressed air leaks are detected.
Once detected, take a photo or video on the SonaVu™. Download images to a report. Create a work order and schedule the relevant maintenance. Once these leaks are fixed, these hidden costs are removed permanently.
SonaVu™ helps businesses create compressed air leak management programs. Machine components such as compressors, dryers, filters, tubing, fittings, cylinders, actuators, piping, and nitrogen generator systems can then be examined regularly with ease. Some common applications are provided below.
Typical Compressed Air Inspections with SonaVu™
- Compressors
- Dryers
- Tubing & Hoses
- Compressed Air Fittings
- Filters, Regulators, Lubricators (FRLs)
- Nitrogen Systems

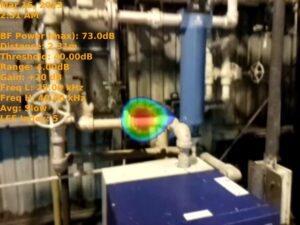

Compressed Air Pipe Union Leak from Air Dryer

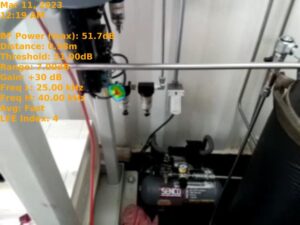

Leak from Compressed Air Filter Inlet

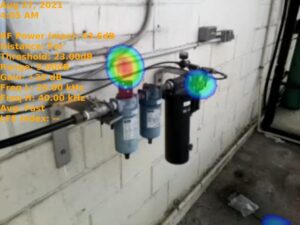

Leak from Outlet of Compressed Air Coalescer
Why Choose SonaVu™?
SonaVu™ is fast becoming one of the easiest proactive tools available for maintenance personnel. It is easy to use. There is very little training and experience required to get started. Reliability managers can set up programs very easily and quickly. And most importantly, if you see on the screen, a problem exists. You can even connect to your wireless headphones and listen while you scan. If you hear something different, just look at the screen to confirm any abnormalities.
Take photos of the areas of concern. If it’s a cyclic problem, take a video as well. Download all images and videos to investigate further.
Share the information, collaborate, plan and fix all issues.

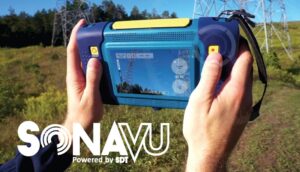

SonaVu™ Overview
- 112 Highly Sensitive Sonic Sensors
- Precision Optical Camera
- 5” Color Display
- Detects defects and failure modes from 50M away
- SonaVu InSights™ – Web application instant reports for compressed air leak and electrical asset surveys
SonaVu™ offered by CASL
CASL supports the Caribbean, Suriname and Guyana with SonaVu™.
- Book your complimentary demo today. There is no financial commitment required.
- Collaborate with our engineers for support.
- Take advantage of online learning.
- Hear directly from the experts at SDT.
Fill out the form and let’s connect.
